【New Upgrade 5000W Solar Hybrid Inverter】48VDC to 110V/120VAC pure sine wave inverter with built-in 80A MPPT charge controller. Utilizes advanced digital voltage/current double closed-loop control and SPWM technology, achieving up to 99.9% charging efficiency. Supports utility, generator, and solar charging with high safety performance for reliable home circuit protection

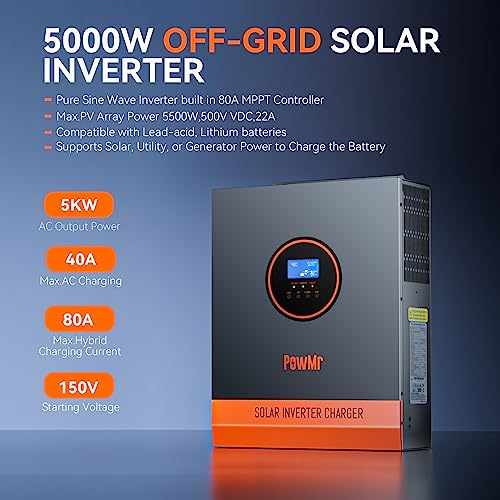

【Specifications】5000W Pure Sine Wave Solar Hybrid Inverter, 48V DC to 120V AC. Max Input Power: 5500W; PV Voltage Range: 120–500Vdc; Max PV Input Current: 22A; Max Output Power: 5000W; Max Charge Current: 80A; AC Input Voltage: 90–140V; Output Voltage: 100/105/110Vac (±5%); PV Start Voltage: >150Vdc

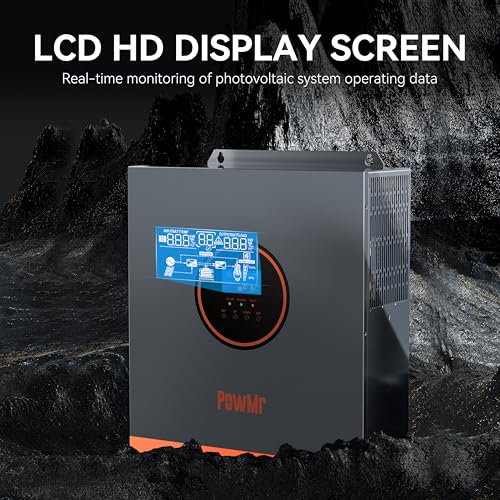

【LCD Display & Real-Time Monitoring】This 5000W solar hybrid inverter features an intuitive LCD screen and LED indicators for real-time system data and status monitoring. It clearly displays fault codes for quick troubleshooting and supports various household and office appliances—including refrigerators, TVs, air conditioning, and more. Designed with intelligent cooling and multi-layer protection, it ensures safe and stable pure sine wave AC power output for your devices
【Multiple Charging Modes】This off-grid pure sine wave power inverter offers four optional battery charging modes (Only Solar, Utility Priority, Solar Priority, and Utility + Solar Hybrid) and three configurable output modes (PV Priority, Utility Priority, Inverter Mode) to suit various application needs. Designed with a smart battery charger for optimized performance, it is compatible with grid or generator input and supports a wide range of household and office loads
【Compatible Battery Type】This 5000W pure sine wave inverter supports activation via PV solar or mains power, and is compatible with both 48V lead-acid (Sealed, AGM, Gel, Flooded) and lithium batteries. Note: The package includes only the inverter and instruction manual. Batteries, WiFi modules, adapters, plugs, and cables are not included and must be purchased separately if required
